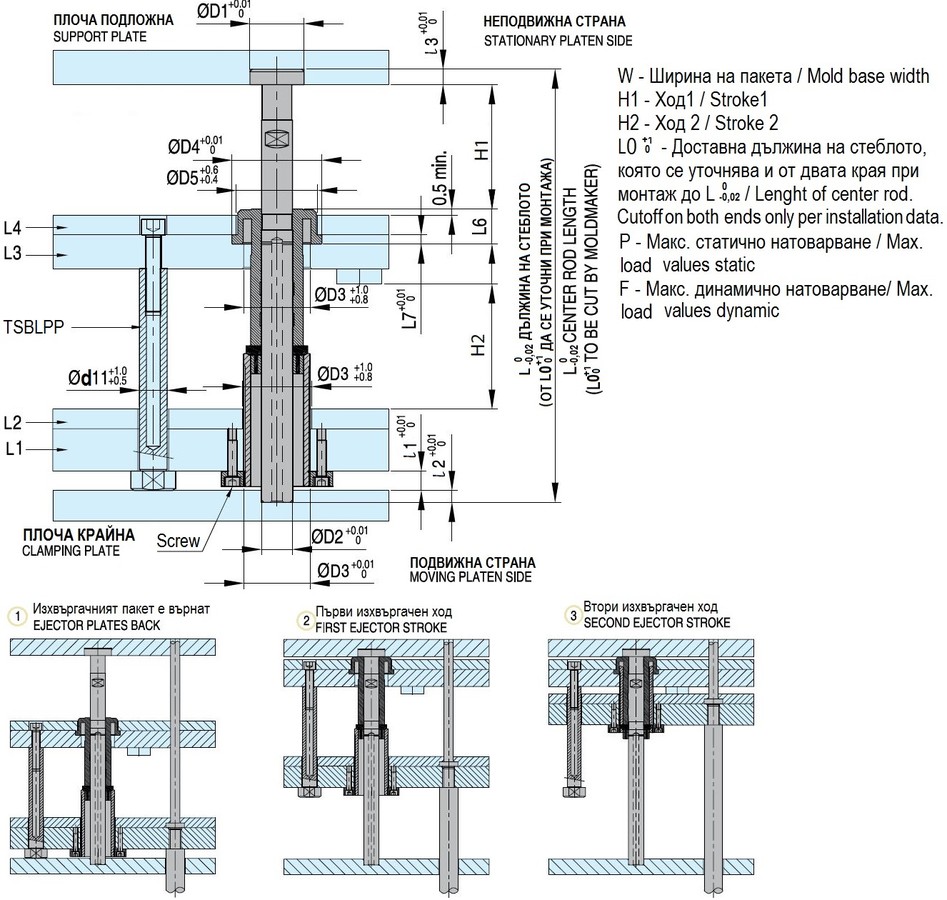

TSBL Two- stage ejectors Bottom last sequencing
* no stock items 3 to 7 days
^ actual prices on request
| Product name | D2 | H1 | H2 | W | P | F | L | Lo | L1 | L2 | L3 | L4 | l1 | l2 | l3 | l4 | D1 | D3 | D4 | D5 | d11 | L6 | L7 | Screw | 3D | Availability BG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TSBL20A | 20 | min8_max82 | min8_max82 | — | 600kg,5.8kN | 60kg;0.58KN | 262.96 | 280 | 26 | 12 | 26 | 12 | 11 | 8 | 8 | 4 | 34 | 43 | 58.2 | 50.8 | 18 | 22.7 | 6 | M6 |  |
pcs check Enquiry |
| TSBL26A | 26 | min10_max92 | min10_max92 | — | 6100kg,10.8kN | 110kg;1.08KN | 285.32 | 314 | 26 | 12 | 26 | 12 | 14 | 10 | 10 | 9 | 44 | 54 | 70 | 62.8 | 21 | 22.7 | 6 | M8 | |
pcs check Enquiry |
| TSBL32A | 32 | min12_max102 | min12_max102 | — | 2000kg,19.6kN | 200kg;1.96KN | 316.68 | 354 | 26 | 16 | 26 | 16 | 17 | 12 | 12 | 10 | 58 | 68 | 87 | 78 | 26 | 28.88 | 7 | M10 | |
pcs check Enquiry |
