S_M Ejector sleeves nitrided - inches
* no stock items 3 to 7 days
^ actual prices on request
Special products - on request

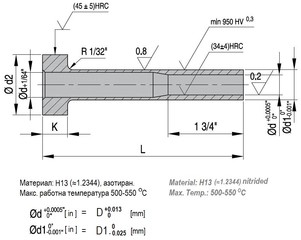

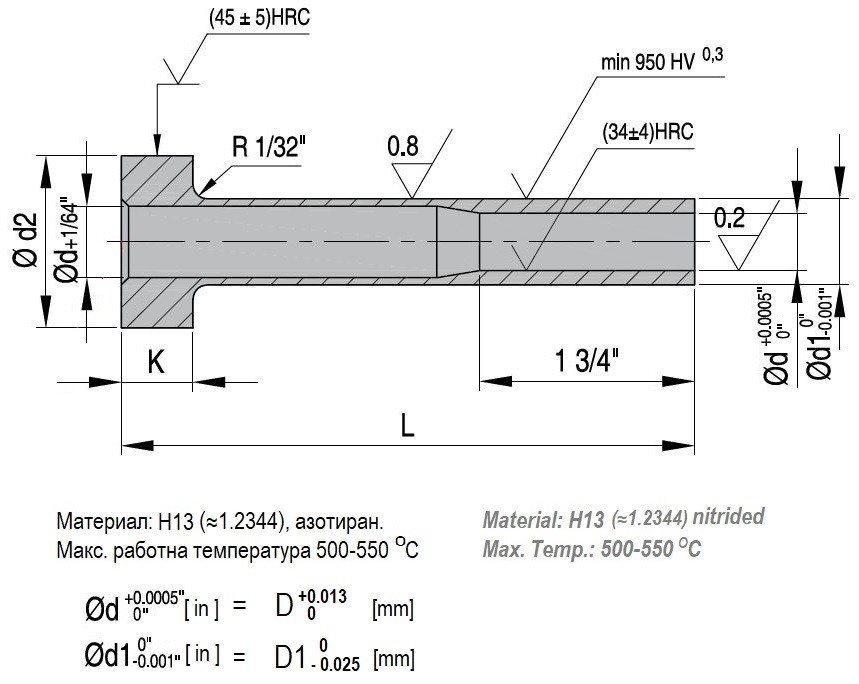

| Product name | d | D | d1 | D1 | L | d2 | K | 3D | Availability BG |
|---|---|---|---|---|---|---|---|---|---|
| S/39-04“ | 1/2“(12.7mm) | 12.7 | 11/16“ | 17.462 | 4“(101.6mm) | 15/16“(23.81mm) | 1/4“(6.35mm) |  |
pcs check Enquiry |
| S/39-05“ | 1/2“(12.7mm) | 12.7 | 11/16“ | 17.462 | 5“(127mm) | 15/16“(23.81mm) | 1/4“(6.35mm) | |
pcs check Enquiry |
| S/39-06“ | 1/2“(12.7mm) | 12.7 | 11/16“ | 17.462 | 6“(152.4mm) | 15/16“(23.81mm) | 1/4“(6.35mm) | |
pcs check Enquiry |
| S/39-07“ | 1/2“(12.7mm) | 12.7 | 11/16“ | 17.462 | 7“(177.8mm) | 15/16“(23.81mm) | 1/4“(6.35mm) | |
pcs check Enquiry |
| S/39-08“ | 1/2“(12.7mm) | 12.7 | 11/16“ | 17.462 | 8“(203.2mm) | 15/16“(23.81mm) | 1/4“(6.35mm) | |
pcs check Enquiry |
| S/39-09“ | 1/2“(12.7mm) | 12.7 | 11/16“ | 17.462 | 9“(228.6mm) | 15/16“(23.81mm) | 1/4“(6.35mm) | |
pcs check Enquiry |
| S/39-10“ | 1/2“(12.7mm) | 12.7 | 11/16“ | 17.462 | 10“(254mm) | 15/16“(23.81mm) | 1/4“(6.35mm) | |
pcs check Enquiry |
| S/39-11“ | 1/2“(12.7mm) | 12.7 | 11/16“ | 17.462 | 11“(279.4mm) | 15/16“(23.81mm) | 1/4“(6.35mm) | |
pcs check Enquiry |
| S/39-12“ | 1/2“(12.7mm) | 12.7 | 11/16“ | 17.462 | 12“(304.8mm) | 15/16“(23.81mm) | 1/4“(6.35mm) | |
pcs check Enquiry |
