PRODUCT DESCRIPTION:

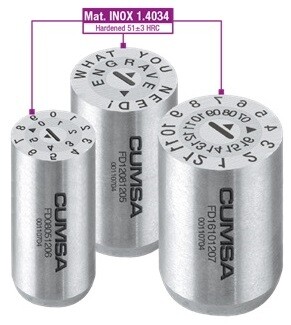

• FD is a double date stamp with dual crown that allows two different indications in one piece, without the need for two separate date stamps.
• It’s available in 3 different diameters: 8mm, 12mm and 16mm for the outer crown, corresponding to diameter 5.5mm, 8mm and 10.5mm for the inner crown.
• The FD is valid for several years. The standard version comes engraved with 12 months on the outer ring, and with 5, 6 or 10 years, depending on the size, on the inner ring. It saves the annual change of the central insert.
• Made of stainless steel, these daters can stand a working temperature of up to 100ºC/ 212ºF. The FD is also appropriate for cleanroom environment.

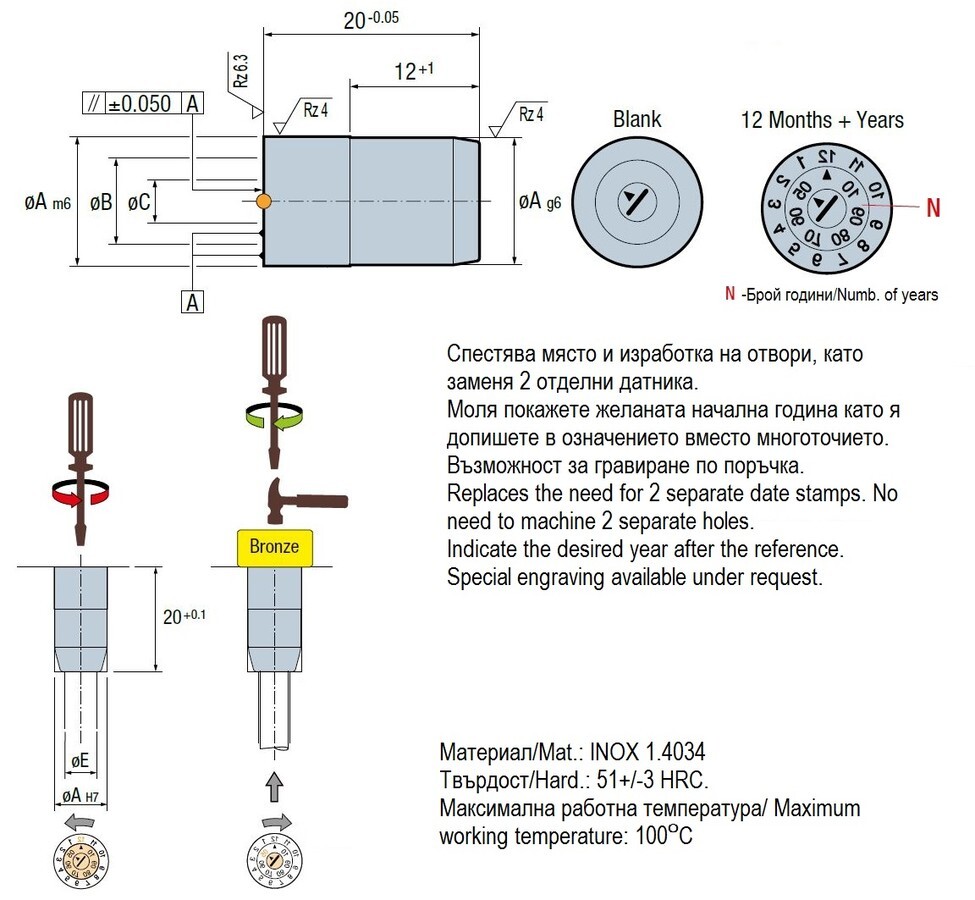

• The FD body has a double diameter g6/m6 tolerances for easy installation.
KEY FEATURES / ADVANTAGES:
• The same height is always maintained between all the rings.
• Double information makes the FD a great choice for molds with reduced space, its installation it only requires one machined hole.
• Quick and easy information update from the mold parting line.
• Turning the center arrow to the left (counterclockwise) rotates the months while turning it to the right (clockwise) defines the year.
• Provides excellent traceability and clear engraving, even on the smallest dimensions.
• Customized engravings are available upon request, and fast turnaround.
Catalog information - HERE
Video – HERE
