PRODUCT DESCRIPTION:
- A 100% mechanical solution designed to increase slide travel up to 150 mm with only 160 mm of mold opening, without the use of angle pins or hydraulic systems.
- Can be applied to single sided slides as well as in duplicate (one LS at each side of the slide) for larger slides.
- The only machining required for installation to the slide is a simple grove on the side of the slide to guide the LS.
- Mirror parts are also available for more mounting options.
- Available with two rod diameters—20 or 30 mm—and multiple slide travel options: standard travel of 50, 75, or 100 mm, and semi-standard travel of up to 150 mm.
- Can be attached to slides with angles inclinations from -25º to +25º.
PRODUCT DESCRIPTION:

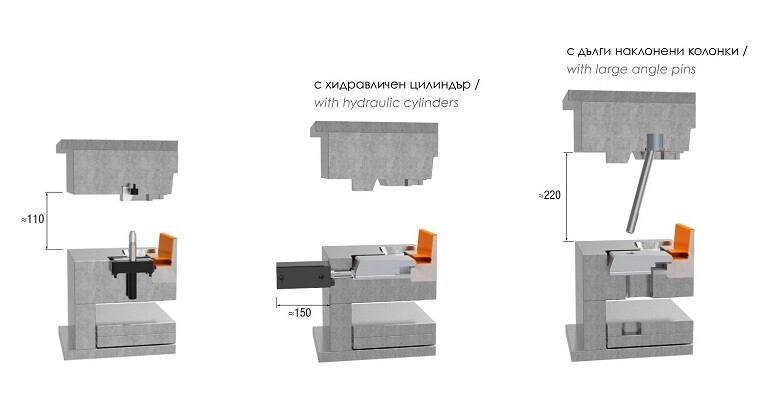

- Compact system reduces the mold size compared to standard solutions with the use of angle pins or hydraulic cylinders.
- All the housings are simple and 90º to the parting line.
- Includes a slide retainer, no need to install additional products.
- Works with robotic arms used for part retrieval without causing any interference.
- The perpendicular movement means less wear and tear and helps with mold longevity.
