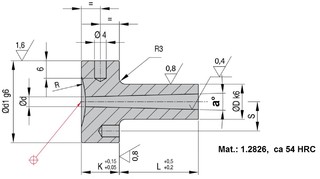

DHR 74 - 79 Sprue bushings Euro standard
* no stock items 3 to 7 days
^ actual prices on request
| Product name | Series | a | d | d1 | K | L | D | S | 3D | Availability BG |
|---|---|---|---|---|---|---|---|---|---|---|
| DHR74/12-22-2,5 | R0 | 2° | 2.5 | 28 | 13 | 22 | 12 | 11 |  |
pcs check Enquiry |
| DHR74/12-22-3,5 | R0 | 2° | 3.5 | 28 | 13 | 22 | 12 | 11 | |
pcs check Enquiry |
| DHR74/12-27-2,5 | R0 | 2° | 2.5 | 28 | 13 | 27 | 12 | 11 | |
pcs check Enquiry |
| DHR74/12-27-3,5 | R0 | 2° | 3.5 | 28 | 13 | 27 | 12 | 11 | |
pcs check Enquiry |
| DHR74/12-36-2,5 | R0 | 2° | 2.5 | 28 | 13 | 36 | 12 | 11 | |
pcs check Enquiry |
| DHR74/12-36-3,5 | R0 | 2° | 3.5 | 28 | 13 | 36 | 12 | 11 | |
pcs check Enquiry |
| DHR74/12-46-2,5 | R0 | 2° | 2.5 | 28 | 13 | 46 | 12 | 11 | |
pcs check Enquiry |
| DHR74/12-46-3,5 | R0 | 2° | 3.5 | 28 | 13 | 46 | 12 | 11 | |
pcs check Enquiry |
| DHR74/12-56-3,5 | R0 | 2° | 3.5 | 28 | 13 | 56 | 12 | 11 | |
pcs check Enquiry |
| DHR74/18-116-3 | R0 | 2° | 3 | 38 | 18 | 116 | 18 | 15 | |
pcs check Enquiry |
| DHR74/18-116-4 | R0 | 2° | 4 | 38 | 18 | 116 | 18 | 15 | |
pcs check Enquiry |
| DHR74/18-27-3 | R0 | 2° | 3 | 38 | 18 | 27 | 18 | 15 | |
pcs check Enquiry |
| DHR74/18-27-4 | R0 | 2° | 4 | 38 | 18 | 27 | 18 | 15 | |
pcs check Enquiry |
| DHR74/18-36-3 | R0 | 2° | 3 | 38 | 18 | 36 | 18 | 15 | |
pcs check Enquiry |
| DHR74/18-36-4 | R0 | 2° | 4 | 38 | 18 | 36 | 18 | 15 | |
pcs check Enquiry |
| DHR74/18-46-3 | R0 | 2° | 3 | 38 | 18 | 46 | 18 | 15 | |
pcs check Enquiry |
| DHR74/18-46-4 | R0 | 2° | 4 | 38 | 18 | 46 | 18 | 15 | |
pcs check Enquiry |
| DHR74/18-56-3 | R0 | 2° | 3 | 38 | 18 | 56 | 18 | 15 | |
pcs check Enquiry |
| DHR74/18-56-4 | R0 | 2° | 4 | 38 | 18 | 56 | 18 | 15 | |
pcs check Enquiry |
| DHR74/18-76-3 | R0 | 2° | 3 | 38 | 18 | 76 | 18 | 15 | |
pcs check Enquiry |
| DHR74/18-76-4 | R0 | 2° | 4 | 38 | 18 | 76 | 18 | 15 | |
pcs check Enquiry |
| DHR74/18-96-3 | R0 | 2° | 3 | 38 | 18 | 96 | 18 | 15 | |
pcs check Enquiry |
| DHR74/18-96-4 | R0 | 2° | 4 | 38 | 18 | 96 | 18 | 15 | |
pcs check Enquiry |
| DHR75/18-27-3,5 | R0 | 3° | 3.5 | 38 | 18 | 27 | 18 | 15 | |
pcs check Enquiry |
| DHR75/18-27-4,5 | R0 | 3° | 4.5 | 38 | 18 | 27 | 18 | 15 | |
pcs check Enquiry |
| DHR75/18-36-3,5 | R0 | 3° | 3.5 | 38 | 18 | 36 | 18 | 15 | |
pcs check Enquiry |
| DHR75/18-36-4,5 | R0 | 3° | 4.5 | 38 | 18 | 36 | 18 | 15 | |
pcs check Enquiry |
| DHR75/18-46-3,5 | R0 | 3° | 3.5 | 38 | 18 | 46 | 18 | 15 | |
pcs check Enquiry |
| DHR75/18-46-4,5 | R0 | 3° | 4.5 | 38 | 18 | 46 | 18 | 15 | |
pcs check Enquiry |
| DHR75/18-56-3,5 | R0 | 3° | 3.5 | 38 | 18 | 56 | 18 | 15 | |
pcs check Enquiry |
| DHR75/18-56-4,5 | R0 | 3° | 4.5 | 38 | 18 | 56 | 18 | 15 | |
pcs check Enquiry |
| DHR75/18-76-4,5 | R0 | 3° | 4.5 | 38 | 18 | 76 | 18 | 15 | |
pcs check Enquiry |
| DHR75/24-46-4,5 | R0 | 3° | 4.5 | 48 | 23 | 46 | 24 | 20 | |
pcs check Enquiry |
| DHR75/24-56-4,5 | R0 | 3° | 4.5 | 48 | 23 | 56 | 24 | 20 | |
pcs check Enquiry |
| DHR75/24-56-6,5 | R0 | 3° | 6.5 | 48 | 23 | 56 | 24 | 20 | |
pcs check Enquiry |
| DHR75/24-76-4,5 | R0 | 3° | 4.5 | 48 | 23 | 76 | 24 | 20 | |
pcs check Enquiry |
| DHR75/24-76-6,5 | R0 | 3° | 6.5 | 48 | 23 | 76 | 24 | 20 | |
pcs check Enquiry |
