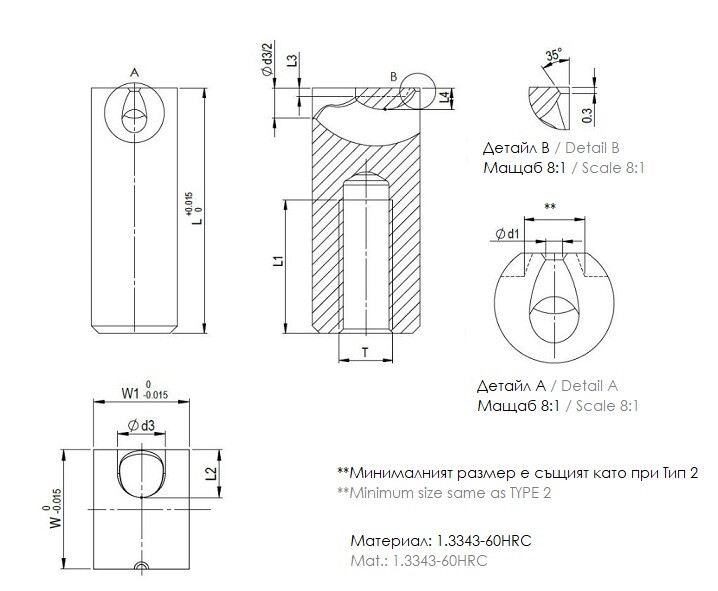

TGS T1 Tunnel Gate Insert Round Type1
| Product name | W | W1 | d1 | d3 | L | L3 | L4 | L2 | L1 | T | Availability BG |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TGS0806S1 | 8 | 6 | 0.6 | 3 | 22.6 | 0.6 | 1.7 | 3.25 | 13 | 4 | pcs check Enquiry |
| TGS0808S1 | 8 | 6 | 0.8 | 3 | 22.6 | 0.6 | 1.7 | 3.25 | 13 | 4 | pcs check Enquiry |
| TGS1008S1 | 10 | 8 | 0.8 | 4 | 22.6 | 0.8 | 2.0 | 4 | 12 | 5 | pcs check Enquiry |
| TGS1012S1 | 10 | 8 | 1.2 | 4 | 22.6 | 0.8 | 2.0 | 4 | 12 | 5 | pcs check Enquiry |
| TGS1016S1 | 10 | 8 | 1.6 | 4 | 22.6 | 0.8 | 2.0 | 4 | 12 | 5 | pcs check Enquiry |
| TGS1212S1 | 12 | 10 | 1.2 | 5 | 22.6 | 0.8 | 2.2 | 5 | 11 | 5 | pcs check Enquiry |
| TGS1216S1 | 12 | 10 | 1.6 | 5 | 22.6 | 0.8 | 2.2 | 5 | 11 | 5 | pcs check Enquiry |
| TGS1220S1 | 12 | 10 | 2.0 | 5 | 22.6 | 0.8 | 2.2 | 5 | 11 | 5 | pcs check Enquiry |
| TGS1416S1 | 14 | 12 | 1.6 | 6 | 22.6 | 0.8 | 2.4 | 6 | 10 | 6 | pcs check Enquiry |
| TGS1420S1 | 14 | 12 | 2.0 | 6 | 22.6 | 0.8 | 2.4 | 6 | 10 | 6 | pcs check Enquiry |
| TGS1424S1 | 14 | 12 | 2.4 | 6 | 22.6 | 0.8 | 2.4 | 6 | 10 | 6 | pcs check Enquiry |
| TGS1428S1 | 14 | 12 | 2.8 | 6 | 22.6 | 0.8 | 2.4 | 6 | 10 | 6 | pcs check Enquiry |
